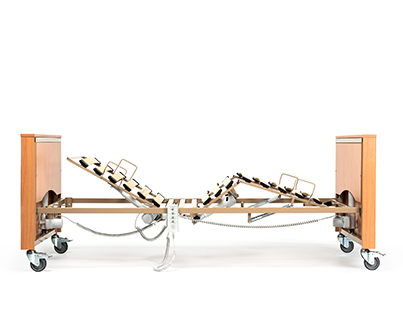

Vermeiren High-Low Bed Club

Description

A series of beds combining over 65+ years of expertise in home care solutions. The Club family from VERMEIREN is designed based on input from users, rental companies and health care professionals. A simple and safe four-section bed to provide the best comfort and care at home.

See brochure in downloads for more details.

Adjust all Club beds electrically with their three Linak™ standard motors. Adjust the height according to the needs of either user or caregiver for care or transfers
The (anti-) Trendelenburg position is standard included to go the extra mile for the user
Easy-to-use controller for both carer and user, with additional lock function
All 4 wheels can be locked for safety and security and allow for easy maneuvering
Large range of options

Total width 1005; 1037 mm
Total height (without lifting pole) 834 – 1262 mm
Total length 2125; 2175 mm
Height adjustment of the bed surface (without mattress) 400 – 810 mm
Max. backrest adjustment 69°
Max. thigh adjustment 20,7°
Max. lower leg adjustment -16,5°
Mattress spec. RG 35, thickness 120 mm, 2000×900 mm
Max. load lifting pole 80 kg
Weight 60,8 kg; 62 kg
Maximum user weight 165 kg
